Laminated Glass Cloth Laminated Glass Cloth Laminated Glass Cloth
Product Description
Epoxy board is also known as epoxy glass fiber board, epoxy phenolic laminated glass cloth board, model 3240, epoxy resin is a general molecular containing two or more than two epoxy groups of organic polymer compounds, except for a few, their relative molecular mass is not high. The molecular structure of epoxy resin is characterized by the presence of active epoxy groups in the molecular chain, which can be located at the end of the molecular chain, in the middle or in a ring structure. Because of the active epoxy groups in the molecular structure, they can cross-link with various types of curing agents to form insoluble, non-fusible polymers with three-way network structure.
instructions

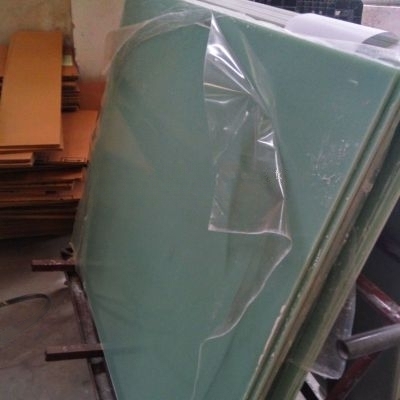

This product epoxy board: glass fiber cloth is made of epoxy resin bonding and heating and pressure production, model 3240, high mechanical performance at medium temperature, stable electrical performance under high humidity. It is suitable for mechanical, electrical and electronic parts with high insulation structure. It has high mechanical and dielectric properties, good heat resistance and moisture resistance. Heat resistance grade F (155 degrees).
Specification thickness: 0.5 ~ 100mm
Regular specifications: 1000mm*2000mm
Color: Yellow
Origin: Domestic
In the case of heat deformation at a high temperature of 180 ° C, it is generally not heated with other metals in a piece, which may cause deformation of metal plates
Application features
1. Various forms. Various resin, curing agent and modifier systems can almost meet the requirements of various applications on the form, which can range from very low viscosity to high melting point solids.
2, easy to cure. Using various curing agents, the epoxy resin system can cure almost in the temperature range of 0 ~ 180℃.
3. Strong adhesion. The inherent polar hydroxyl group and ether bond [1] in the molecular chain of epoxy resin make it have high adhesion to various substances. Epoxy resins have low shrinkage when cured and generate little internal stress, which also helps to improve adhesion strength.
4. Low contractility. The reaction of the epoxy resin and the curing agent used is carried out by direct addition reaction or ring opening polymerization reaction of the epoxy group in the resin molecule, without the release of water or other volatile by-products. Compared with unsaturated polyester resins and phenolic resins, they show very low shrinkage (less than 2%) during curing.
5. Mechanical properties. The cured epoxy resin system has excellent mechanical properties.
