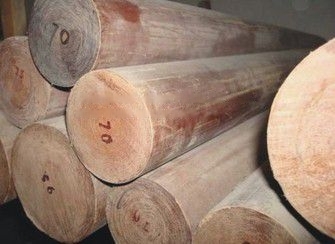

Phenolic Laminated Glass Cloth Rods Phenolic Laminated Glass Cloth Rods Phenolic Laminated Glass Cloth Rods
Product Description
Epoxy bar:
Epoxy rod is also known as epoxy glass fiber rod, epoxy phenolic laminated glass cloth rod, model 3240, epoxy resin is generally refers to the molecule contains two or more than two epoxy groups of organic polymer compounds, except for a few, their relative molecular mass is not high. The molecular structure of epoxy resin is characterized by the presence of active epoxy groups in the molecular chain, which can be located at the end of the molecular chain, in the middle or in a ring structure. Because of the active epoxy groups in the molecular structure, they can cross-link with various types of curing agents to form insoluble, non-fusible polymers with three-way network structure.
instructions
This product epoxy board: glass fiber cloth is made of epoxy resin bonding and heating and pressure production, model 3240, high mechanical performance at medium temperature, stable electrical performance under high humidity. It is suitable for mechanical, electrical and electronic parts with high insulation structure. It has high mechanical and dielectric properties, good heat resistance and moisture resistance. Heat resistance grade F (155 degrees).
Specification thickness: 0.5 ~ 100mm
Regular specifications: 1000mm*2000mm
Color: Yellow
Origin: Domestic
In the case of heat deformation at a high temperature of 180 ° C, it is generally not heated with other metals in a piece, which may cause deformation of metal plates
Application features
1. Various forms. Various resin, curing agent and modifier systems can almost meet the requirements of various applications on the form, which can range from very low viscosity to high melting point solids.
2, easy to cure. Using various curing agents, the epoxy resin system can cure almost in the temperature range of 0 ~ 180℃.
3. Strong adhesion. The inherent polar hydroxyl group and ether bond [1] in the molecular chain of epoxy resin make it have high adhesion to various substances. Epoxy resins have low shrinkage when cured and generate little internal stress, which also helps to improve adhesion strength.
4. Low contractility. The reaction of the epoxy resin and the curing agent used is carried out by direct addition reaction or ring opening polymerization reaction of the epoxy group in the resin molecule, without the release of water or other volatile by-products. Compared with unsaturated polyester resins and phenolic resins, they show very low shrinkage (less than 2%) during curing.
5. Mechanical properties. The cured epoxy resin system has excellent mechanical properties.
Finished products, rubber products, insulating materials technology research and development, production and sales of integrated enterprises. The company has been with domestic and foreign professional engineering plastics, insulating materials manufacturers to maintain a good partnership, in order to meet the various development needs of our customers, at the same time, agents Taiwan, Germany, the United States, Korea, Japan, Switzerland and other countries, a variety of engineering plastics, insulating materials board, rod. Tube.
PEEK board/rod, PPS board/rod, PVDF board/rod, PTFE board/rod, PSU board/rod, PEI board/rod, PI board/rod, PAI board/rod, PPO board / bar, PBT board/bar, CPVC board/bar, UPE board/bar, PETP board/bar, PC board/bar, POM board/bar, ABS board/bar, PMMA board/bar, PP board/bar, PE board / bar, imported PU board/bar, German PES board/bar, domestic PVC board/bar, Swiss engineering PBI board/bar, German PA nylon series board/bar/piece, MC nylon series board. Insulation materials: Taiwan red, black electric board, cold stamping board, phenolic laminated cloth bar board, heat insulation board, epoxy glass fiber bar board, epoxy board (FR-4) asbestos board, etc. Anti-static products: anti-static POM board/bar, anti-static organic board, anti-static PC board. Anti static PVC board/bar, anti static nylon board/bar synthetic SLATE and so on.
