PTFE-Lined Tees: Enhancing Pipeline Performance

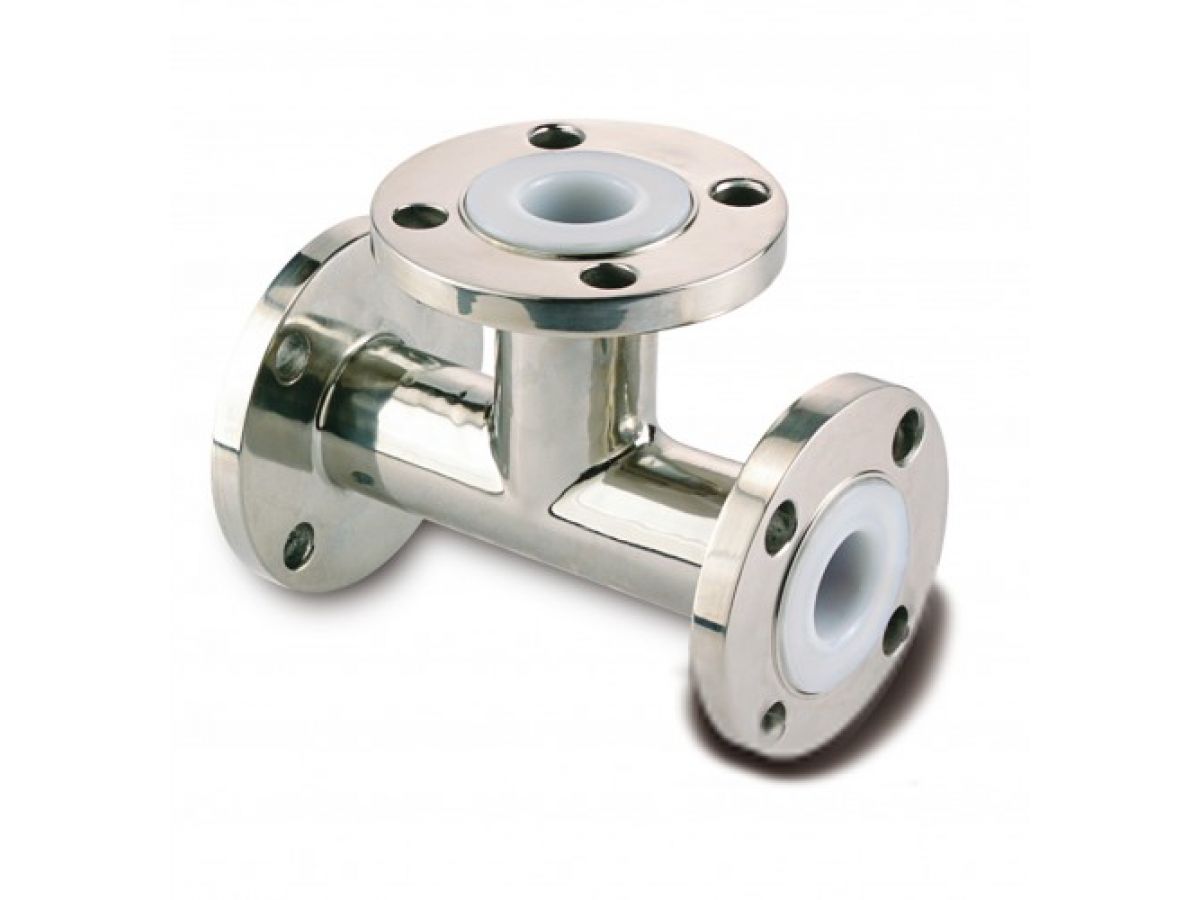

Our PTFE-lined equal tees and reducing tees are engineered to offer exceptional performance, longevity, and safety.

With minimal permeation rates and substantial wall thicknesses, our PTFE-lined tees boast an extended service life. The absence of corrosion in PTFE-lined pipeline systems further contributes to their durability, minimizing maintenance costs and downtime.

Our PTFE lining not only prevents leaks but also ensures that harmful gases and vapors are contained, enhancing workplace safety and reducing environmental impact.

These PTFE-lined tees are highly resistant to a wide range of chemicals, providing flexibility and cost-effectiveness. They are abrasion and wear-resistant while maintaining nonstick and high-purity characteristics.

For added versatility, our PTFE-lined T-pieces are available in diameters up to 4″ with a choice of two different linings.

Opt for the PTFE-lined variant, featuring a high-performance flange connection with a proven design (see drawing A), or consider our PFA-lined tees (as shown on drawing B). PFA, a tetrafluoroethylene-based copolymer, offers chemical and thermal properties comparable to PTFE but excels in flexibility, especially in tubing applications.

All reducing tees come with fixed flanges as standard, and loose flanges can be provided upon request. Additionally, we accommodate intermediate sizes and special dimensions as needed, meeting ANSI B 16.5 standards.

Choose our PTFE-lined tees for reliability, longevity, and chemical resistance in your pipeline systems.

PTFE Lined Equal Tees – dimensions

PTFE Lined Reducing Tees – dimensions
