Polyamide 6 (PA 6) Sheets for Versatile Solutions

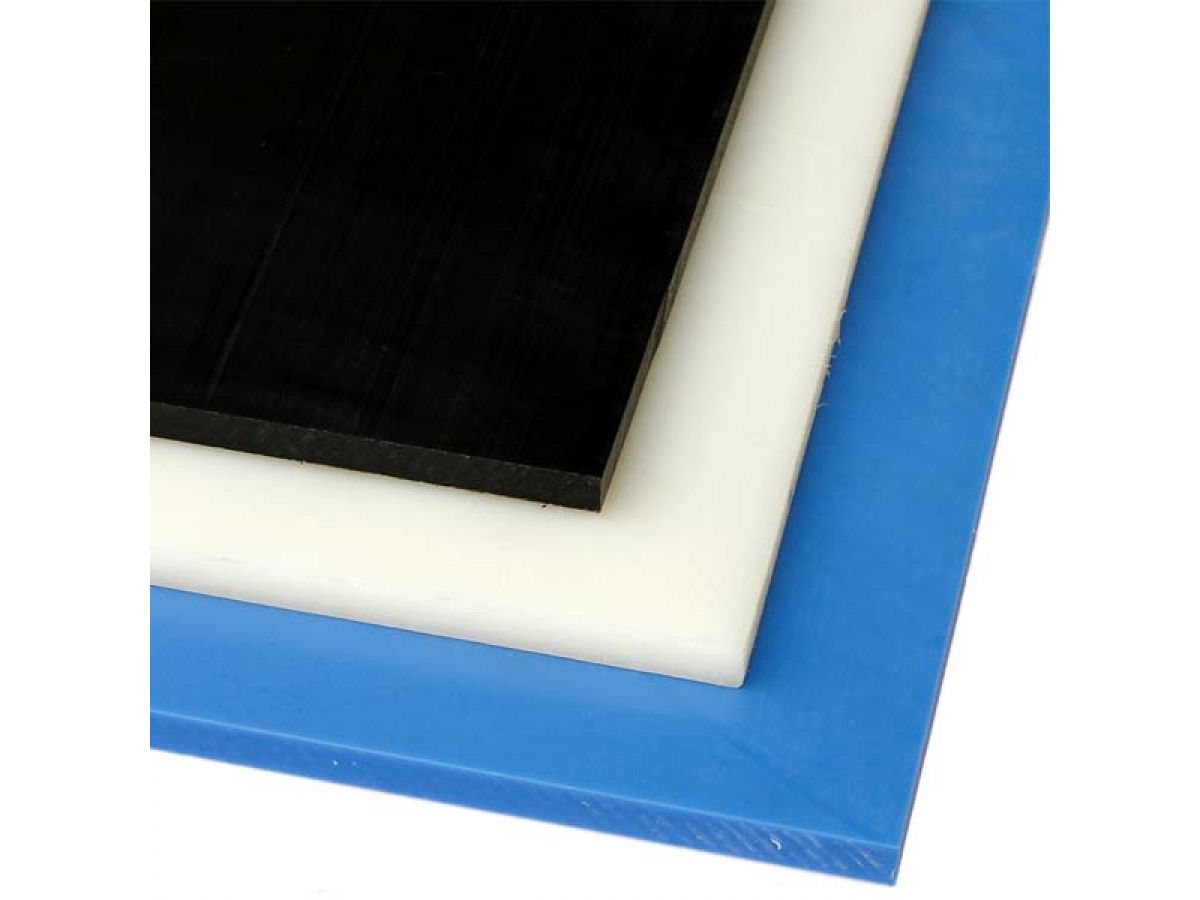

Our Polyamide 6 (PA 6) sheets, also known as Nylon 6, represent the most prevalent polyamide in the industry, offering a well-rounded blend of characteristics typical to this material group. Notably, these sheets excel in damping properties, impact strength, and maintain high tenacity even at low temperatures.
In comparison to filled variants, our PA 6 / Nylon 6 sheets do exhibit higher moisture absorption, slightly reduced wear-resistance, and a marginal decrease in dimensional stability. Additionally, there are constraints on the size of semi-finished products and unit weight due to the manufacturing process.
One of the most significant advantages of our Polyamide 6 sheets is their remarkably low density, translating to potential cost savings of up to 50% compared to traditional metal products such as steel and bronze. These sheets boast mechanical properties akin to metals, making them a compelling choice.
Machining our Nylon 6 / Polyamide 6 sheets is a breeze, as they can be expertly milled, turned, drilled, and ground. These sheets contribute to noise reduction, vibration dampening, corrosion resistance, and are safe for contact with food and drinking water. Furthermore, they are eco-friendly and highly resistant to various substances, including hydrocarbons, oils, alcohols, ketones, esters, acids, alkalis, and weak chemicals. Polyamide 6 sheets are non-toxic and heat-resistant, assuring reliability in various applications.
Key Features of our Polyamide 6 / Nylon 6 Sheets:
- Exceptional resistance to high-temperature aging over extended periods.
- Outstanding strength and stiffness.
- Functional toughness even in sub-zero temperatures.
- High flow for easy mold filling.
- Inherent fire resistance.
- Excellent dielectric properties.
- Superior abrasion resistance.
- Unmatched chemical resistance.
- High barrier properties against chemical agents, gasoline, fats, or aromatic substances.
- Effective oxygen barrier.
- Controlled water absorption.
Applications:
- General Industries
- Power Tools: Housings and Internal Parts
- Bearings
Discover the versatility and reliability of our Polyamide 6 sheets for your industrial needs.
Mechanical Properties
| MECHANICAL PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| Modulus of elasticity (tensile test) |
3300 | MPa | 1mm/min | DIN EN ISO 527-2 |
| Tensile strength | 79 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Tensile strength at yield | 78 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Elongation at yield | 4 | % | 50mm/min | DIN EN ISO 527-2 |
| Elongation at break | 130 | % | 50mm/min | DIN EN ISO 527-2 |
| Flexural strength | 100 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Modulus of elasticity (flexural test) |
2900 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Compression strength | 24/41/86 | MPa | 1% / 2% / 5% | EN ISO 604 |
| Compression modulus | 2700 | MPa | 5mm/min, 10 N | EN ISO 604 |
| Impact strength (Charpy) | n.b. | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eU |
| Notched impact strength (Charpy) | 7 | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eA |
| Ball indentation hardness | 155 | MPa | ISO 2039-1 |
Thermal Properties
| THERMAL PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| Glass transition temperature | 45 | C | DIN EN ISO 11357 | |
| Melting temperature | 221 | C | DIN EN ISO 11357 | |
| Service temperature | 160 | C | short term | NN |
| Service temperature | 100 | C | long term | NN |
| Thermal expansion (CLTE) | 12 | 10-5*1/K | 23-60°C, long. | DIN EN ISO 11359-1;2 |
| Thermal expansion (CLTE) | 13 | 10-5*1/K | 23-100°C, long. | DIN EN ISO 11359-1;2 |
| Thermal conductivity | 0.37 | W/(k*m) | ISO 22007-4:2008 |
Electrical Properties
| ELECTRICAL PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| surface resistivity | 1014 | O | Silver electrode, 23°C, 12% r.h. | DIN IEC 60093 |
| volume resistivity | 1014 | O*cm | Silver electrode, 23°C, 12% r.h. | DIN IEC 60093 |
| Dielectric strength | 31 | kV/mm | 23°C, 50% r.h. | ISO 60243-1 |
| Resistance to tracking (CTI) | 600 | V | Platin electrode, 23°C, 50% r.h., solvent A | DIN EN 60112 |
Other Properties
| OTHER PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| Resistance to hot water/ bases | (+) | – | – | |
| Flammability (UL94) | HB | – | corresponding to | DIN IEC 60695-11-10; |
| Resistance to weathering | – | – | – | |
| Water absorption | 0.6 | % | 24h / 96h (23°C) | DIN EN ISO 62 |
