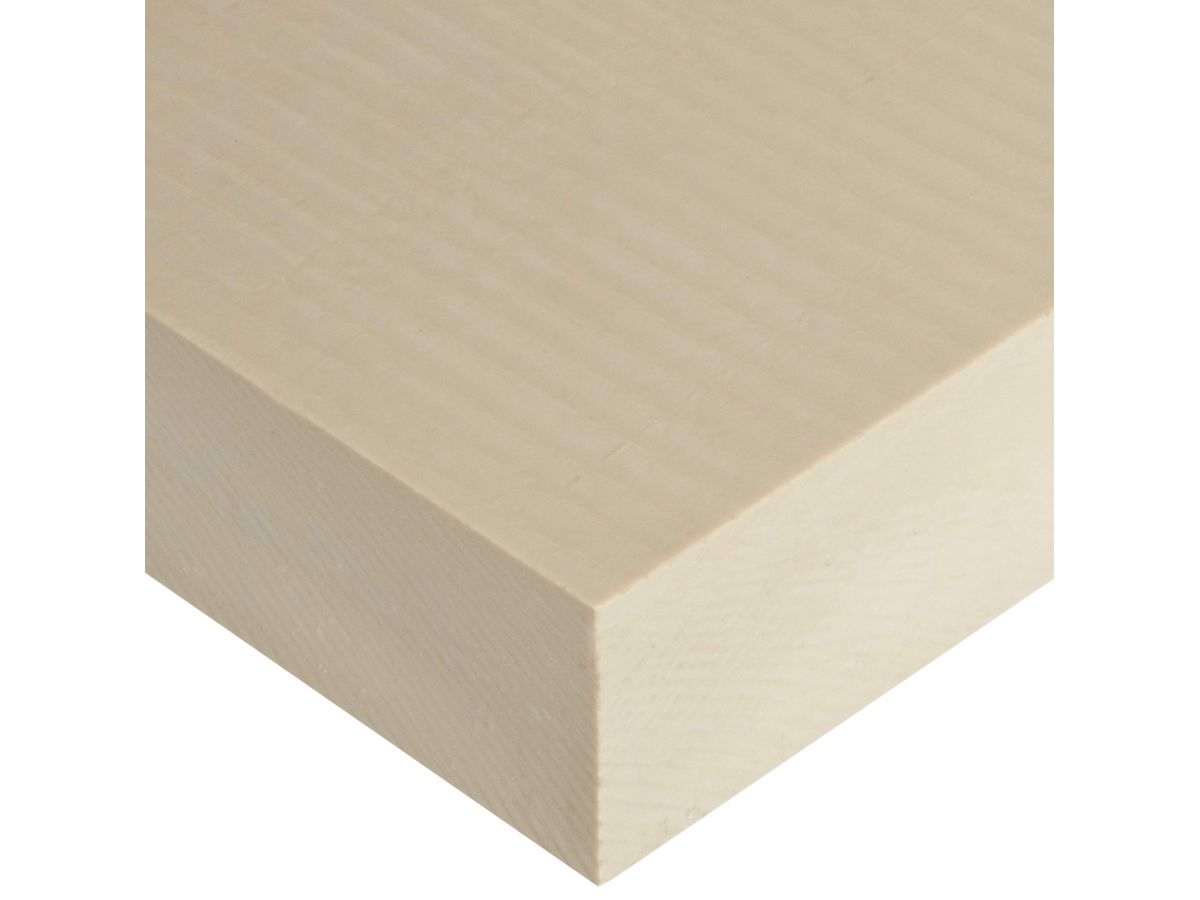

PEEK Sheetings
PEEK sheets have excellent resistance to chemicals, including aggressive, resistant to petrol, oil and lubricants. Chemical resistance of PEEK sheets is comparable to the resistance of the chemical resistance of the polymer – fluoroplastic 4 with the exception of a number of substances (highly concentrated acids and alkalis, chlorine, bromine, fluorine and sodium).
For example, at room temperature, PEEK sheets are resistant to organic solvents. PEEK sheets are Not resistant to concentrated acids (sulfuric, nitric, hydrochloric, hydrofluoric), methyl ethyl ketone and nitrobenzene at + 200 ° C.
If the operating temperature of the items is above 100 – 150 ° C and high mechanical, hydrolysis, chemical resistance of parts is needed, if it’s necessary to produce high-precision product, including fine thread or a gear with a small module, etc. – PEEK sheets are not only suitable for the application, but will last long time with a high degree of reliability.
Using PEEK sheets is effective if you apply Teflon, and it does not suit very well to you: sailing, does not hold a shape, wear out quickly, demonstrates poor mechanical properties at high temperatures, it is difficult to produce a product of high precision. PEEK sheets are made of versatile polymer Polyether ether ketone that is suitable for replacement of virtually any other polymer, many metals and their alloys, and can operate in virtually any environment.
Applications:
- medical technology
- engineering
- food technology
- electro engineering
Mechanical Properties
| MECHANICAL PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| Modulus of elasticity (tensile test) |
4200 | MPa | 1mm/min | DIN EN ISO 527-2 |
| Tensile strength | 116 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Tensile strength at yield | 116 | MPa | 50mm/min | DIN EN ISO 527-2 |
| Elongation at yield | 5 | % | 50mm/min | DIN EN ISO 527-2 |
| Elongation at break | 15 | % | 50mm/min | DIN EN ISO 527-2 |
| Flexural strength | 175 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Modulus of elasticity (flexural test) |
4200 | MPa | 2mm/min, 10 N | DIN EN ISO 178 |
| Compression strength | 23/43/102 | MPa | 1% / 2% | EN ISO 604 |
| Compression modulus | 3400 | MPa | 5mm/min, 10 N | EN ISO 604 |
| Impact strength (Charpy) | n.b. | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eU |
| Notched impact strength (Charpy) | 4 | kJ/m2 | max. 7,5J | DIN EN ISO 179-1eA |
| Ball indentation hardness | 253 | MPa | ISO 2039-1 |
Thermal Properties
| THERMAL PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| Glass transition temperature | 150 | C | DIN 53765 | |
| Melting temperature | 341 | C | DIN 53765 | |
| Heat distortion temperature | 162 | C | HDT, Method A | ISO-R 75 Method A |
| Service temperature | 300 | C | short term | NN |
| Service temperature | 260 | C | long term | NN |
| Thermal expansion (CLTE) | 5 | 10-5*1/K | 23-60°C, long. | DIN EN ISO 11359-1;2 |
| Thermal expansion (CLTE) | 5 | 10-5*1/K | 23-100°C, long. | DIN EN ISO 11359-1;2 |
| Thermal conductivity | 0.27 | W/(k*m) | ISO 22007-4:2008 | |
| Specific heat | 1.1 | J/(g*K) | ISO 22007-4:2008 | |
| Thermal expansion (CLTE) | 7 | 10-5*1/K | 100-150°C, long. | DIN EN ISO 11359-1;2 |
Electrical Properties
| ELECTRICAL PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| surface resistivity | 1015 | O | Silver electrode, 23°C, 12% r.h. | DIN IEC 60093 |
| volume resistivity | 1015 | O*cm | Silver electrode, 23°C, 12% r.h. | DIN IEC 60093 |
| Dielectric strength | 73 | kV/mm | ISO 60243-1 | |
| Resistance to tracking (CTI) | 125 | V | Platin electrode, 23°C, 50% r.h., solvent A | DIN EN 60112 |
Other Properties
| OTHER PROPERTIES | VALUE | UNIT | PARAMETER | NORM |
|---|---|---|---|---|
| Resistance to hot water/ bases | + | – | – | |
| Flammability (UL94) | V0 | – | listed (value at 1.5mm) | DIN IEC 60695-11-10; |
| Resistance to weathering | – | – | – | |
| Water absorption | 0.03 | % | 24h / 96h (23°C) | DIN EN ISO 62 |
